SAVOIA
Renewable equipmentSAVOIA
Renewable equipmentIndependent water , wind & solar powered systems for small towns, sawmills, weekend houses, communication remote stations, cathodic protection, etc. Integrated compound systems wind/solar/hydro-diesel up to 250KW.
: the revolution on renewable fuels=> BD2 modules for 400 to 4000 L/day here!
AC Hydroelectric
MicroTurbines up to 165 L/s flow
INNOVATIVE!! AC 50/60hz minihydroturbines, with PMG synchronous alternator-->Prices here!
"Stream
Engine" machines with PMG alternators for
battery charging
Each
one can store in batteries up to 24 kwh/day (3-4 houses energy
consumption).
Then, by adding our SPI inverters
you can get AC power from the batteries. Study
them here!
Pipe inlet: 1.5 ", dimensions: 400 x 400 x 300 mm, weight: 18 kg
POWER OUTPUT TABLE (WATT Continuous)
|
Head |
FLOW Litres/min(Gallon/min) |
|
|||||
|
40 (10) |
80 (20) |
150 (40) |
300 (75) |
400 (100) |
600 (150) |
||
|
3 (10) |
20 |
50 |
90 |
120 |
|||
|
6 (20) |
15 |
40 |
100 |
180 |
230 |
350 |
|
|
15(50) |
45 |
110 |
230 |
450 |
550 |
800 |
|
|
30 (100) |
80 |
200 |
500 |
940 |
1000 |
||
|
60(200) |
150 |
400 |
900 |
1000 |
|||
NEW!!
QS axial turbine,
AC 220V-50hz, 500Watt, for 1,5
a 3,2 m head
Turbine QS + batery charger + 3
Kw PSW inverter : U$S 2.900 FOB

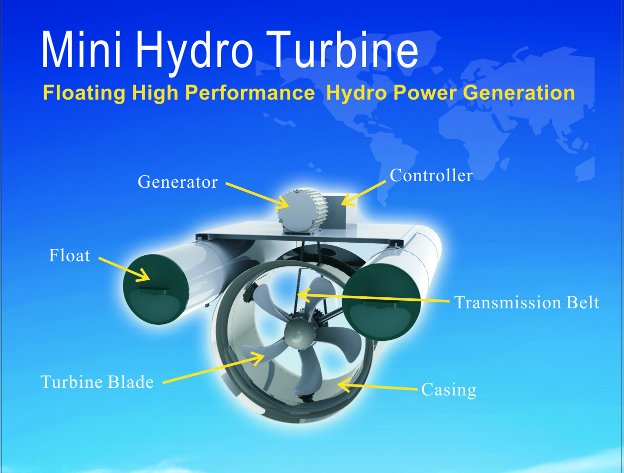

NO HEAD NEEDED!** "Float"
AC turbines, 220V-50hz o 120V-60hz, for floating along a channel or a
river flow
|
At 3.0 m/s flow speed, stores 6000 Wh/day At 1.8 m/s flow speed, stores 2400 Wh/day |
|
** For fast flowing
streams and vessels, Aquair submersible
12-24VDC turbine, with PMG alternator and electronic load
diverter/battery
charger.
|
At 4 m/s flow speed, stores 2350 Wh/day At 2 m/s flow speed, stores 1150 Wh/day |
|
Ask
prices for your complete stand
alone hydro-energy system by e-mail.
